Expandable Container House
Created with Pixso.

EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel

EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel

Brand Name: Lanjing
Model Number: LJ-H01
MOQ: 1 set
Price: UD$6000 per set
Payment Terms: L/C,T/T,D/P
Supply Ability: 18000 sets/Month
Detail Information
Place of Origin:
Weifang,China
Certification:
CE, ISO, SGS
Design Ability:
Graphic Design,3D Modeling Design,Structural Analysis
Drawing:
Design The Drawing As Your Demand
Standard:
GB,ASTM, DIN, JIS, AISI, BS
Software:
CAD, Tekla, Sketchup, Pkpm, Bim
Project Solution Capability:
Graphic Design, 3D Model Design
Packing & Delivery:
Load Into 40hq Containers
Packaging Details:
Loaded Into Shipping Container
Supply Ability:
18000 sets/Month
Highlight:

EPS Panel expandable prefab house

,

Galvanized Steel expandable prefab house

,

ASTM container house expandable

Product Description

EPS Panel Expandable Container House Light Weight Structure Galvanized Steel



EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 0

China Premier Container House Manufacture for the Global Market



Product Description



This modular expandable living container house specializes in creating versatile, space-efficient homes. These houses are designed for easy expansion and mobility, offering cost-effective, customizable living solutions ideal for various needs, from temporary housing to permanent residences.

Container house with 3 rooms offers a versatile living solution, featuring three spacious rooms, easy transportation, and quick setup. Ideal for various uses, it combines durability with modern design, ensuring comfort and convenience in any location.

Product features :

 1) Quick Setup: Manufactured in a 3 in 1 expandable containers factory, these homes are designed for rapid assembly, reducing construction time and labor costs.

 2) Eco-Friendly: Utilizing a container expandable home promotes sustainability and reduces environmental impact, making it an environmentally responsible choice.

 3) Durability: Built with high-quality materials, these homes are designed to withstand various weather conditions, ensuring long-term durability and reliability.



20FT expandable house is 12 square meter before folding, and occupies an area of 37 square meter after opening.

40FT expandable house is 24 square meter before folding, and occupies an area of 75 square meter after opening.
EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 1





Our Advantages



EASY INSTALLATION



Designed with simplicity and efficiency in mind, it can be assembled by just a few people in a matter of hours, without the need for specialized tools or complex skills. The modular components fit together seamlessly like a giant Lego set.

EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 2



EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 3

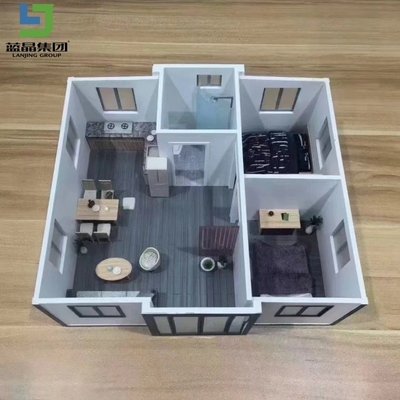

LAYOUT  CUSTOMIZED



It's like a magical building block set, allowing you to freely shape your living or working space.  You can easily reconfigure the layout as you desire, just as a master artist rearranges elements on a canvas.



INTERIOR DECORATION CUSTOMIZED



It's like a blank canvas waiting for your creative touch. You can transform the interior as easily as a fashion designer changes a model's outfit. Swap out wall panels, choose from a variety of flooring options, and play with different lighting fixtures.

EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 4



Product Parameters



EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 5

20 feet expandable folding container house configuration parameters
Product 20 feet House type One Hall
Expanded size L5850*W6360*H2520 Number of people accommodated 2-4people
Internal size L5740*W6260*H2250 Power consumption 12KW
Folded Size L5850*W2240*H2520 Total net weight 3 tons
Floor area 38m²
Frame structure
No. Name Content Specifications
Main frame Top side beam 40*80*1.2mm square tube
Top beam 60*120*3.0mm square tube
Bottom side beam 50*100*1.2mm square tube
Bottom beam 60*120*3.0mm square tube
Hanging head 162-178-125mm cast iron painting
Steel column 160*160*3.0mm square tube
7 Overall framework protective coating Spray Electrostatic spray molding/straight white plastic powder
Roof Main external top plate 1.2mm corrugated steel sheet plus rock wool
9 Outer top plate of the side wing 75mm EPS color steel plate 12kg/m³+corrugated sheet 0.4mm
10 Internal ceiling panels PVC or Color Steel Plate ceiling panel
11 Wallboard Side walls,front and rear 75mm EPS color steel plate 12kg/m³+corrugated sheet 0.4mm
12 Inner partition board 50mm EPS color steel plate
13 Ground Center floor Composite board+4mm SPC Flooring
14 Floor on both sides Composite board+4mm SPC Flooring
15 Doors and windows Plastic steel sliding window Double-glazed glass 1100*1130mm
16 Steel single door 840*2035mm
17 Electrical system Circuit breaker system One 32A leakage protector.Voltage 220V,50HZ
18 Light Bull 30*30 flat lamp,large ceiling lamp
19 Socket Standard international three hole and five hole sockets
(socket standards can be configured according to customer requirements)
20 Light Switch Double open,single key switch
21 Wiring Incoming Line 6²,Air conditioning socket 4²,Ordinary socket 2.5²,Lighting 1.5²
22 Accessory Including top corner line skirting line corner wrapping waterproof tape sling structural adhesive and glue gun



Detailed Photos



EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 6



LJ Group Projects



EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 7



Certifications

EPS Panel Expandable Prefab House Light Weight Structure Galvanized Steel 8



FAQ



Q1: Can we accept the custom service and personalized design?
A: Yes, our professional engineer team can make a drawing by following customers' requirement.

Q2: How to install?
A: It is easy and fast assemble. We will provide detailed installation video and instruction to you.
Technicians will be sent to help you on site if necessary. However, the visa fee, tickets, accommodation, food and wages will be under taken by buyers.

Q3: What is the delivery time?
A: Normally in 10-15days after deposit received.
