products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Steel Structure Warehouse
Created with Pixso.

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage

Brand Name: LanJing
Model Number: S01
MOQ: 100 Square Meters
Price: US$60.00 100-4,999 Square Meters
Payment Terms: L/C,T/T
Supply Ability: 2, 500t/M
Detail Information
Place of Origin:
China
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable, Green
Application:
Workshop, Warehouse, Platform, Fabricated House, Farm House, Poulty Chicken House, Shed,Garage
Door:
Electric/manual Rolling Door/Sliding Door
Main Frame:
Welded H Steel Beam, Steel Truss
Surface Treatment:
Hot DIP Galvanized Or Painted
HS Code:
7308900000
Connection:
Bolt Connection Or Welded Connection
Wall And Roof Sandwich Panel:
EPS, Rock Wool, Glass Wool, PU
Packaging Details:
Loaded into shipping container
Supply Ability:
2, 500t/M
Highlight:

prefab steel structure warehouse

,

prefab steel warehouse buildings

,

workshop steel structure warehouse

Product Description

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage

Steel structure building is light in weight, high in strength, good in rigidity and plasticity Steel structure warehouse and workshop are very popular in many countries. Because the steel structure system has a strong ability to resist earthquake and horizontal load. And the Installation can be completed quickly without the influence of environmental season.


Steel structures are widely used in warehouse, workshop, commerical office, hospital, hangar, shed, commercial steel building, farm poultry broiler and layer chicken house, sheep shed, pig shed, garage, industrial steel structure, bridge and more.


Name Steel structuree building
Dimensions Length H beam: 4000-15000mm
Thickness: web plate: 6-32mm
wing plate: 6-40mm

Height 200-1200mm
Color According to customers
Size MOQ is 200 m2, width * length * eave height
Advantages 1. Lower cost but beautiful outlook.
2. High safety performance.
3. easy to assemble and dismantle
4. manufacture under complete quality control system---ISO9001
5. installation with instruction of experienced engineers
6. Light and Strong

7.Environmentally Friendly

8.Recyclable

Main components Base Cement and steel foundation bolts
Main frame H beam
Material Q235B, Q345B or others as buyers' requests.
Purlin C or  Z purlin: Size from C120~C320, Z100~Z20
Bracing X-type or other type bracing made from angle, round pipe
Bolt Plain bolt and High-strenth bolt
Roof & wall Sandwich panel or color plate
Door Sliding or rolling door
Window Aluminium alloy window
Surface Two lays of Anti-rust Painting or Hot Dip Galvanized
Sheet 0.5mm or 0.6mm galvanized sheet
Accessories Semi-transparent skylight belts, Ventilators,down pipe, Glavanized gutter, etc
Usages

1. Steel structure workshop, warehouse, plant, shed, storage, factory
2. Steel structure frame structure
3. Farm poultry house chicken cow sheep
4. Portal frame products
5. High rise building project

6. Steel structure industrial building

7.Commercial steel structure building

8.Steel Structure Hangar


Packing

Steel components are packaged with iron pallets at the factory with the coding number, which is convenient for customers to unload;

Small steel structures are bundled with iron wires and hung with tags.

Fasteners are packed in wooden cases

The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.

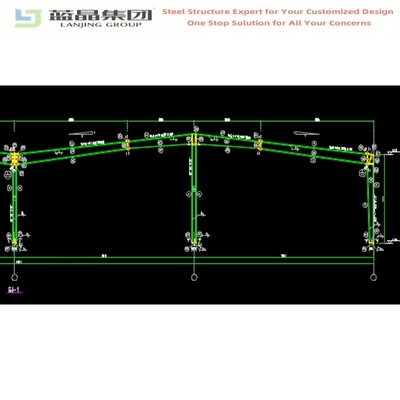

Drawing According to drawings or according to customer ' s requirement.

Design Parameters

If you need we design for you, please supply us the following parameter
together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, aseismatic requirements, etc
4) Demands for doors and windows

5) Brickwall needed or not If yes, 1.2m high or 1.5m high? or other?

6) Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok.
7)Other information if necessary


Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 0Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 1

  • Product Application

Light steel structure building, Metal warehouse, workshop,commerical steel structure building, Farm poultry chicken house, brilor chicken house, layer chicken house, Cow shed, Sheep shed, Garage, Hanger. As well as bridge,oil releated steel structure buildings.

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 2

  • Technical Support

We boast advanced steel structure production equipment and technology, as well as a team of professional designers. We provide tailored solutions based on your specific requirements, usage, and local climate.

       Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 3

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 4


  • Production Process

In the steel structure production process, we adhere to strict quality control at every stage, from the procurement of raw materials to the final product's delivery. Our technical team uses advanced production equipment and processes, aligning with international quality standards to ensure that every steel structure product possesses exceptional strength, durability, and stability. Through continuous quality monitoring and meticulous inspection procedures, we ensure that each project meets our clients' high standards, guaranteeing the safety and quality of the construction.

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 5

  • Packaging & Shipping

We considered the fragility, weight, and potential risks during transportation of different components when loading the products into the shipping containers, and took appropriate measures to ensure the safe and efficient unloading process for the customers.

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 6


  • Company Profile

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 7

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 8

Lanjing Group, Weifang City of Shandong Province, north of China, with a factory area of more than 12 hectares ((120.000SOM ), is a comprehensive enterprise integrating steel structure design, manufacturing, and installation. With over 20 years of industry experience, the company has always adhered to the philosophy of "quality-oriented, customer first." It is committed to providing customers with efficient, safe and environmentally friendly steel structure solutions. With strong technical expertise and extensive project experience, Lanjing Group has become one of the leading enterprises in the steel structure industry in china.

Main Products

Steel structure Building

Prefabricated container house

Metal Sandwich Panels

Large Space Span Prefab Structural Steel Frame Structure Building Workshop Warehouse Metal Warehouse Shed Storage 9

  • FAQ

Q1: Is your company a factory or trading company?
A: We are manufacturer with foreign trade department, so you can get competitive price as well as professional service. And you are always welcomed to visit our factory at any time.

Q2: What are your main products?
A: We provide steel structure warehouse, workshop, plants,chicken house, prefabricated house, container type house, garage, aircraft hangar, sandwich panels and other construction materials. According to the requirements of different projects and clients, we will supply different designs and steel products.Customized design is available.

Q3: What's the quality assurance you provide and how do you make quality control?
A: Quality-first is our core value. LJ steel structure quality assurance team and quality control team have developed a rigorous quality inspection system based on ISO9001. Testing Laboratory guarantees qualified raw materials and high- standard product.

Q4: Do you provide installation instructions and on-site installation services?
A:Every project will provide the installation instructions, and if you need, we also would like to send our engineer to the local construction site for helping the installation work.

Q5: What should I provide to get a complete quotation?
A: Please provide information as follows:

1.Project location 5.Length (sidewall,m) 9.Window material, style,size
2.Snow load 6.Width (end wall, m) 10.Door material, style,size
3.Wind load 7.Wall Height (eave, m) 11.raining condition
4.Seismic magnitude 8.Middle column allowed or not 12.Crane needed or not
13.other information if necessary
