Steel Structure Workshop
Created with Pixso.

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse

Brand Name: LanJing
Model Number: S01
MOQ: 100 Square Meters
Price: US$60.00 100-4,999 Square Meters
Payment Terms: L/C,T/T
Supply Ability: 2, 500t/M
Detail Information
Place of Origin:
China
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable, Green
Install:
Online Guidance, Support Installation
Drawing:
Design The Drawing As Your Demand
Standard:
GB, ASTM, DIN, JIS, AISI, BS
Application:
Workshop, Warehouse, Platform, Fabricated House, Farm House, Poulty Chicken House, Shed,Garage
Door:
Electric/manual Rolling Door/Sliding Door
Main Frame:
Welded H Steel Beam, Steel Truss
Secondary Frame:
C&Z Purlin, Brace
Performance:
Safety, Water-Proof, Sound Insulated Hear-Preserva
Roof Cladding:
Steel Sheet /Sandwich Panel
Surface Treatment:
Hot DIP Galvanized Or Painted
Environment Protection:
Environmental Friendly Material
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution Fo
Software:
CAD, Tekla, Sketchup, Pkpm, Bim
Wall Color:
White, Blue, Optional Colors
Transport Package:
Loaded Into Shipping Container
Specification:
Q355b. Q235b
HS Code:
7308900000
Production Capacity:
2, 500t/M
Certification:
ISO, CE, BV, SGS
Warranty:
30 Years Limited Service Life
Connection:
Bolt Connection Or Welded Connection
Usage Life:
50 Years
Wall And Roof Sandwich Panel:
EPS, Rock Wool, Glass Wool, PU
Rain Spout:
PVC
Lighting:
Plane Skylight
Option:
Skylight Belt, Ventilation Fitting, Gutter, Crane
Type:
Portal Frame, Frame Construction
Delivery Time:
Normally 30-45 Days After Shop Drawing Approved
After-sales Service:
Online Technical Support,Onsite Installation
Customization:
Available
Packaging Details:
Loaded into shipping container
Supply Ability:
2, 500t/M
Highlight:

Steel Structure Workshop Prefabricated

,

Modern Steel Structure Workshop

,

Q235b metal workshops

Product Description

New Technology Design Modern Easy Assemble Prefabricated Steel Structure Workshop Plant Building Warehouse

A steel structure warehouse or workshop refers to a building where the main load-bearing components are made of steel, including primary members, secondary members, roof and wall sheeting, all interconnected with various other building components. These buildings can be equipped with different structural and non-structural additions, such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors, windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation, etc.

Steel structures can be used for a variety of purposes, including warehouse, workshop, office, hospital, hangar, shed, commercial steel building, farm poultry broiler/layer chicken house, sheep shed, pig shed, garage and more.

Product Details
Model 1.Single slope, Double slope, Multi-slope
2.Single span, Double-span, Multi-span, One storey, Two-storey, Multi-storey
Usage All kinds of industrial steel structure workshop, warehouse, supermarket, high-rise building, farm house, etc
Column and beam Q355, Q235 Steel
All bolts connected
Straight cross-section or Variable cross-section
Surface Hot-dip galvanized or painted
Roof and wall panel (50mm~200mm) EPS ,PU ,Rockwool ,Glasswool sandwich panels
Colorful corrugated steel sheets
Brace X or V as well as other type bracing made from angle, round pipe etc.
Accessories Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
Window PVC or Aluminum Alloy
C or Z purlin Size from C120~C320, Z100~Z200.
Door Electric manual Sliding or Rolling door
Carrying capacity Resisting winds and seismic impacts
Bearing heavy snows
Drawing Making the design and quotation according to your requirements
Making the quotation according to your drawings
Giving you the satisfying opinion to your project
Packing The steel structure parts will be packaged without covering, but with adequate protection
Sandwich panels will be covered with plastic film
Bolts and other accessories will be loaded into boxes
According to customer's requirement
Certificate ISO9001:2008,CE,SGS,BV.

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 0Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 1

  • Product Application

Steel structures can be used for a variety of purposes, including warehouse, workshop, office, hospital, hangar, shed, commercial steel building, farm poultry broiler/layer chicken house, sheep shed, pig shed, garage and more.

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 2

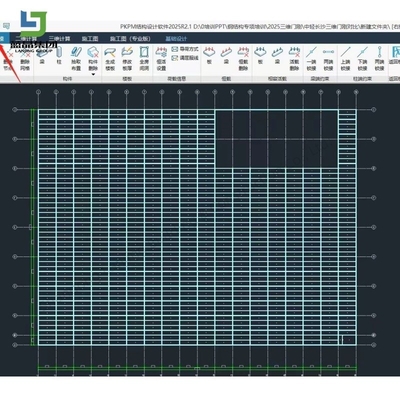

  • Technical Support

Our company can provide one-stop solution including the construction drawings and calculation with you .We have a professional technical team that offers the best steel structure building solutions depands on the specific requirements of our clients.

1 ) Experienced and skilled team of designers who has the capacity to deliver outstanding designs for your project .

2 )Design service is free of charge to all clients to ensure customer .

3 ) We look forward to delivering exceptional designs and advice for your project .

       Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 3

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 4



  • Production Process

In the steel structure production process, we adhere to strict quality control at every stage, from the procurement of raw materials to the final product's delivery. Our technical team uses advanced production equipment and processes, aligning with international quality standards to ensure that every steel structure product possesses exceptional strength, durability, and stability. Through continuous quality monitoring and meticulous inspection procedures, we ensure that each project meets our clients' high standards, guaranteeing the safety and quality of the construction.

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 5

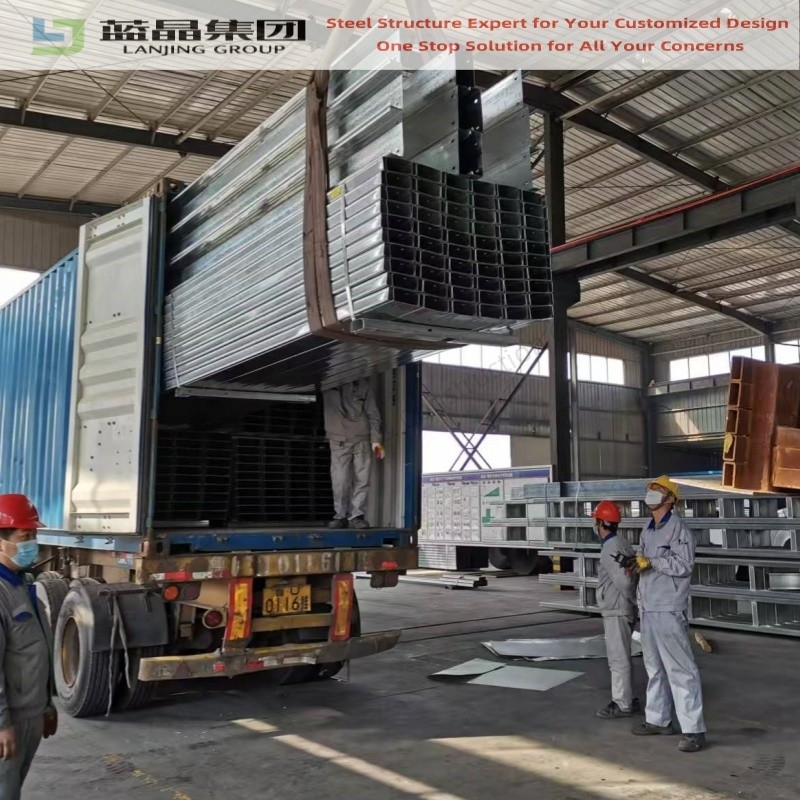

  • Packaging & Shipping

We considered the fragility, weight, and potential risks during transportation of different components when loading the products into the shipping containers, and took appropriate measures to ensure the safe and efficient unloading process for the customers.

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 6



  • Company Profile

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 7

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 8

Shandong Lanjing Building & Construction Co., Ltd. is a professional manufacturer for Steel structure building,Container House and Prefab house in China for more than 10 years.
Exported to 100+ countries and completed 500+ projects.

IS09001, BV, SGS, TUV audited
Lanjing Building & Construction offers comprehensive ONE-STOP services, delivering customized solutions that include Consultation, R&D, Design, Manufacturing, Installation, Overseas project supervision and after-sales support.
We specialize in creation of high-quality Steel structure Warehouse, Workshop, High-rise steel fame building and Container house for Labor camp, worker container etc.
We provide steel building to clients in the sectors of Oil & Gas, Mining, Energy dormitory, Site office, Shower container. Toilet Infrastructure and Construction projects Steel Structure built his reputation Reliability and Service.
Our factory is located in Weifang, China, with a factory area of more than 12 hectares ((120.000SOM )and a registered capital of CNY50 Million, after more than 10 years of development, we have strong technical strength and comprehensive product lines.Steel Structure has completed 500+ projects in more than 100 countries, We has built long-term partnerships with different international companies as well as organizations & government.

Main Products

Steel structure Building

Prefabricated container house

Metal Sandwich Panels

Modern Prefabricated Steel Structure Workshop Plant Building Warehouse 9

  • FAQ

Q1: Is your company a factory or trading company?
A: We are manufacturer with foreign trade department, so you can get competitive price as well as professional service. And you are always welcomed to visit our factory at any time.

Q2: What are your main products?
A: We provide steel structure warehouse, workshop, plants,chicken house, prefabricated house, container type house, garage, aircraft hangar, sandwich panels and other construction materials. According to the requirements of different projects and clients, we will supply different designs and steel products.Customized design is available.

Q3: What's the quality assurance you provide and how do you make quality control?
A: Quality-first is our core value. LJ steel structure quality assurance team and quality control team have developed a rigorous quality inspection system based on ISO9001. Testing Laboratory guarantees qualified raw materials and high- standard product.

Q4: Do you provide installation instructions and on-site installation services?
A:Every project will provide the installation instructions, and if you need, we also would like to send our engineer to the local construction site for helping the installation work.

Q5: What should I provide to get a complete quotation?
A: Please provide information as follows:

1.Project location 5.Length (sidewall,m) 9.Window material, style,size
2.Snow load 6.Width (end wall, m) 10.Door material, style,size
3.Wind load 7.Wall Height (eave, m) 11.raining condition
4.Seismic magnitude 8.Middle column allowed or not 12.Crane needed or not
13.other information if necessary
