Metal Sandwich Panel
Created with Pixso.

Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool

name

Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool

Brand Name: Lanjing
Model Number: LJ-P01
MOQ: 100 square meters
Price: UD$5-15 per square meter
Payment Terms: ,L/C,T/T,D/P
Supply Ability: 3000 Meters/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Weifang,China
Certification:
CE, ISO, SGS
Use:
Wall/Roof/Ceiling/Partition/Cleanroom/Cold Room
Core:
EPS/Rock Wool/PU/PIR/PUR/Polyurethane
Core Density:
10/12/14/16/18/20/40/80/100 Kg/M3
Exterior Steel Thickness:
0.4mm/0.5mm/0.6mm/0.7mm/0.8mm
Interior Steel Thickness:
0.4mm/0.5mm/0.6mm/0.7mm
Width:
950mm/980mm/1000mm/1120mm/1150mm
Packaging Details:
Standard Marine Packing
Supply Ability:
3000 Meters/Day
Highlight:

Fireproof metal sheet sandwich

,

EPS metal sheet sandwich

,

0.4mm metal roof sandwich panels

Product Description

Product Description

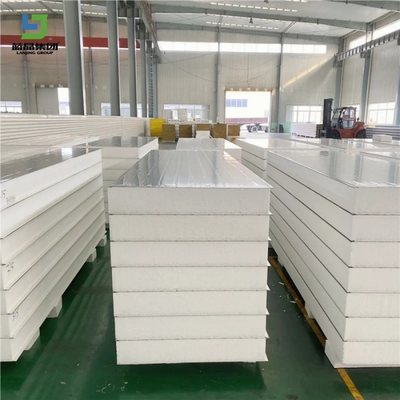

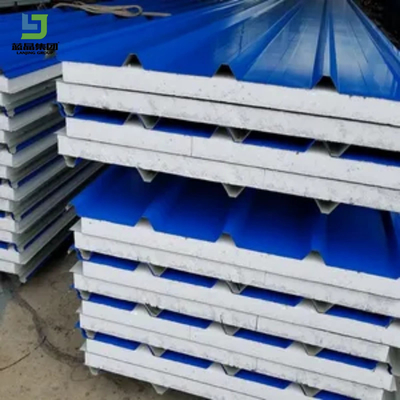

EPS Sandwich Panel



 Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 0



Thickness 50/75/100/120/150(mm)
Effective width 950, 980, 1150(mm)
Length According to customer' s request, less than 11.8m.
Materials Polystyrene foam board, Color steel tile
Structure Upper and lower layer: Color steel sheet
Middle: Polystyrene foam board
EPS density 10/12/14/15/16/18/20 kg/m³
Conventional color White, sea blue, red etc.
Lifetime More than 60 years
Performance Light weight, heat insulation, water resistant, green and environmental
Usage Roof, Wall, Ceiling, Partition

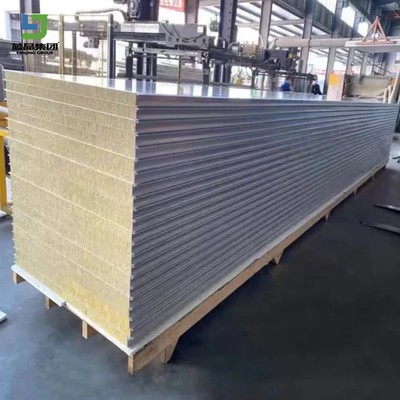

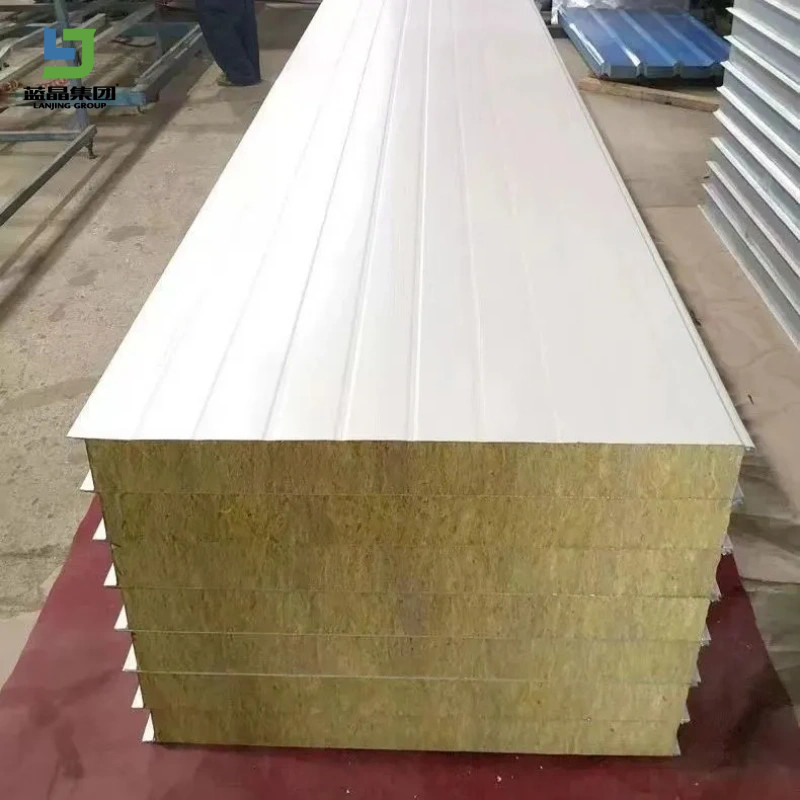

Rockwool Sandwich Panel



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 1



Thickness 50/75/100/120/150/200(mm)
Effective width 950, 980, 1100, 1150(mm)
Length According to customer' s request, less than 11.8m.
Materials Rockwool foam board, Color steel sheet
Structure Upper and lower layer: 0.4mm-0.8mm Color steel sheet
Middle: Rockwool foam board
Rockwool density 60/80/100/120 kg/m³
Conventional color White, sea blue, red etc.
Lifetime More than 60 years
Performance Light weight, heat insulation, water resistant, green and environmental
Usage Roof, Wall, Ceiling, Partition



PU Sandwich Panel



RP-930/1000 Type Application
Effective width(mm) 930/1000

Roof panel

Thickness of plate(mm) 0.4-0.8
Thickness of core material(mm) 40/50/100/150mm
Core material PU/PIR
WP-930/1000Type Application
Effective width(mm) 930/1000 Wall panel
Thickness of plate(mm) 0.4-0.8
Thickness of core material(mm) 40/50/100/150/200mm
Core material PU/PIR



1. Roof sandwich panel



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 2



2. Wall sandwich panel



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 3



3.Cold room sandwich panel



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 4



Sandwich Panel Performance



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 5



Packing&Delivery



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 6



Sandwich Panel Project Cases



Fireproof Board Metal Sheet Sandwich Prefabricated Wall EPS PU Rock Wool 7



FAQ



Q1: Do you offer guiding service for installation on site overseas?

A: Yes. We do. We will give detailed installation drawings and video for free. And if you need, we can send guide engineers as installation director even a working team to your construction site.



Q2: How can I get your quick quotation on my project?

A: You can chat with us at anytime via email or phone to offer us your detail information or you can just leave your message on our website. We will give you the best quotation ASAP.



Q3: What's the procedure of trading?

A: Design drawing →Confirm drawing→Quotation→PI→ConfirmPI→Arrange 30% deposit→Manufacture→ QCinspect→ Paybalance→Shipping.
